Exterior and interior lights

Exterior and interior lights  - Lights - Maintenance and do-it-yourself - Infiniti JX Owners Manual - Infiniti JX

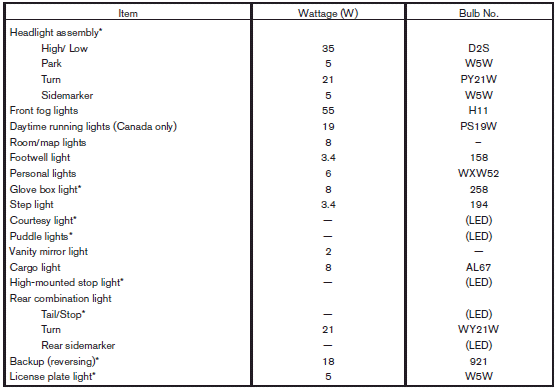

* See an INFINITI retailer for replacement.

* See an INFINITI retailer for replacement.

Always check with the Parts Department at an INFINITI retailer for the latest parts information.

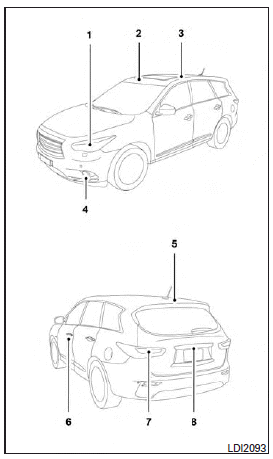

1. Headlight assembly

1. Headlight assembly
2 Map light
3 Personal light
4. Fog light/ Daytime running light (Canada only)
5. Cargo light
6. Courtesy light
7. Rear combination light
8. License plate light

Replacement procedures

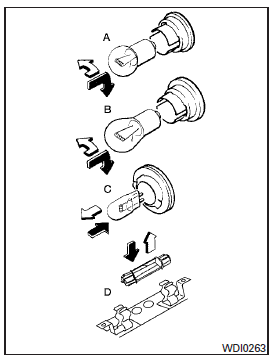

replacing a bulb, first remove the lens, lamp and/or cover.

replacing a bulb, first remove the lens, lamp and/or cover.

Indicates bulb installation Indicates bulb removal
Indicates bulb installation

Use a cloth 1 to protect the housing.

Use a cloth 1 to protect the housing.

Use a cloth 1 to protect the housing.

Use a cloth 1 to protect the housing.

Use a cloth 1 to protect the housing.

Use a cloth 1 to protect the housing.

Use a cloth 1 to protect the housing.

1 Remove the trim surrounding the housing.

1 Remove the trim surrounding the housing.
2 Remove the two screws holding the assembly to the vehicle.
3 Remove the assembly.
4 Replace the necessary bulbs.
