Installing top tether strap (2nd row captain’s seats or 2nd row bench seat)

Infiniti QX / Infiniti QX Owners Manual / Safety — seats, seat belts and supplemental restraint system / Child restraints / Installing top tether strap (2nd row captain’s seats or 2nd row bench seat)

Installing top tether strap (2nd row captain’s seats or 2nd row bench seat) - Child restraints - Safety — seats, seat belts and supplemental restraint system - Infiniti QX Owners Manual - Infiniti QX


2nd row bench seat

First, secure the child restraint with the LATCH lower anchors (2nd row captain’s or bench outboard seating positions only) or the seat belt, as applicable.

1. If necessary, raise or remove the head restraint or headrest to position the top tether strap over the top of the seatback. If the head restraint or headrest is removed, store it in a secure place. Be sure to reinstall the head restraint or headrest when the child restraint is removed. See “Head restraints” earlier in this section and “Headrest” earlier in this section for head restraint or headrest adjustment, removal and installation information.

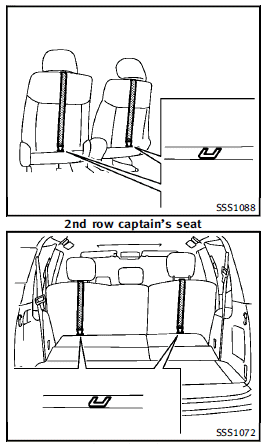

2. Secure the tether strap to the tether anchor point on the back of each seatback behind the child restraint.
3. Tighten the tether strap according to the manufacturer’s instructions to remove any slack. Make sure the head restraint or headrest does not contact the top tether strap. If you have any questions when installing a top tether strap on the rear seat, consult your INFINITI retailer for details.
