Engine compartment check locations

Engine compartment check locations - Maintenance and do-it-yourself - Infiniti QX Owners Manual - Infiniti QX

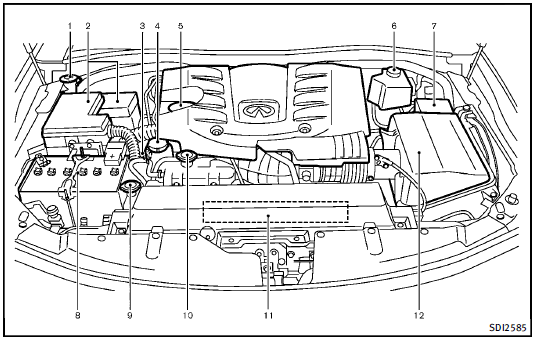

VK56VD ENGINE MODEL

1. Window washer fluid reservoir

1. Window washer fluid reservoir
2. Fuse/fusible link holder
3. Engine oil dipstick
4. Power steering fluid reservoir
5. Engine oil filler cap
6. Brake fluid reservoir
7. Fuse/fusible link holder
8. Battery
9. Radiator filler cap
10. Engine coolant reservoir
11. Drive belts
12. Air cleaner
